Three Sided Diamond Disk Lapidary Diamond Grinding Disc Wheel 100mm 4 Inch x12.7mm Jade Amber Beeswax Gemstone Abrasive Tools(60)

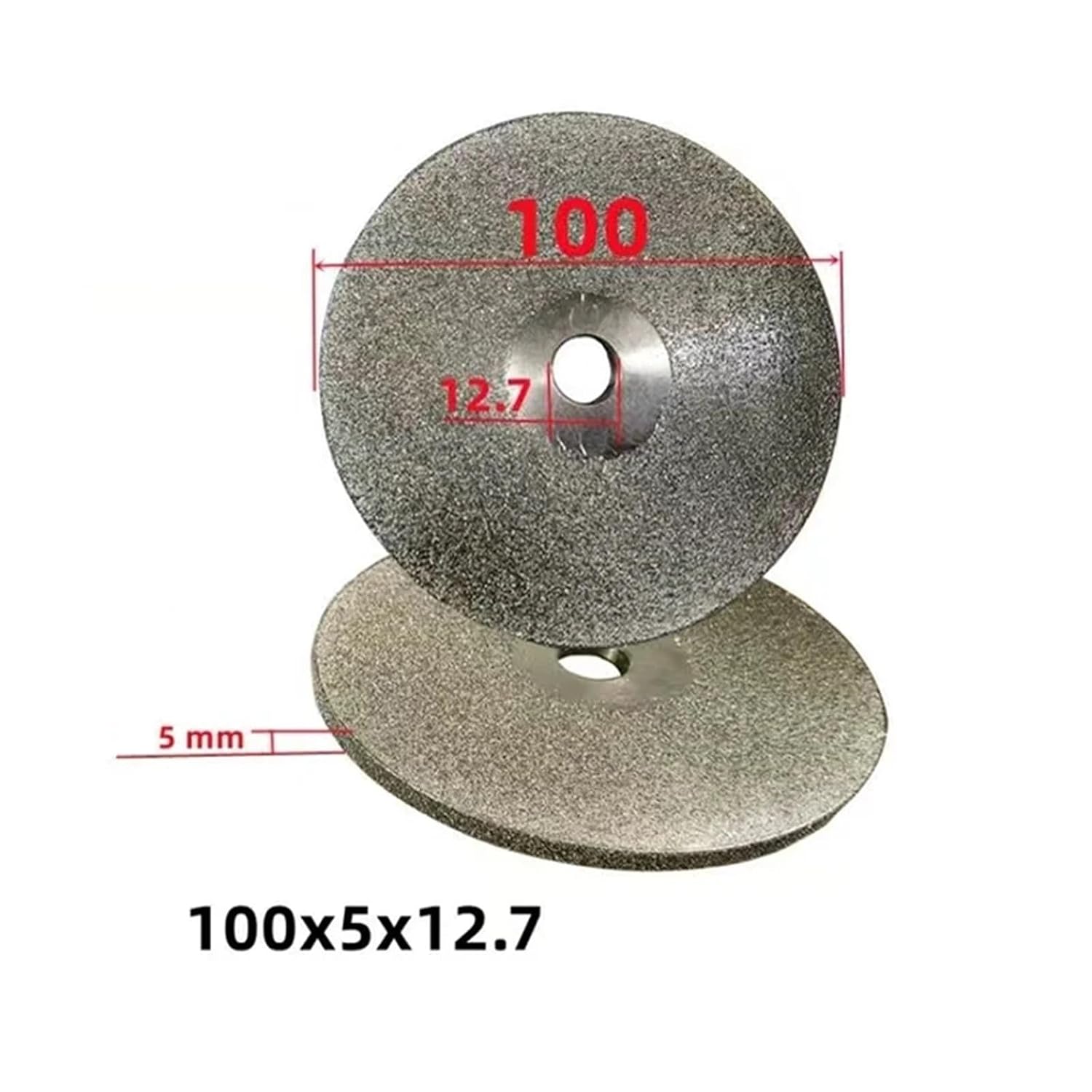

Three Sided Diamond Disk Lapidary Diamond Grinding Disc Wheel 100mm 4 Inch x12.7mm Jade Amber Beeswax Gemstone Abrasive ToolsApplication : Electroplated diamond parallel grinding wheels are mainly used for grinding carbide measuring tools, tungsten steel, high-speed steel, alloy steel, glass, gemstones, jade, jade, amber, beeswax stones, magnetic materials, ceramics, abrasives, etc., and can also be used for cylindrical grinding. For plunge grinding and form grinding.Specification:Outer diameter:100mm /4inchInner hole:12.7Thickness:5mmType : Abrasive DiscDIY Supplies : Metalworking

• Abrasive types: Common abrasives such as white corundum, brown corundum, silicon carbide, diamond, etc. White corundum grinding wheel is suitable for grinding quenched steel, alloy steel, etc; Brown corundum is commonly used for rough grinding of carbon steel, alloy steel, etc; Silicon carbide is suitable for grinding cast iron, non-ferrous metals, and non-metallic materials; Diamond is used for processing hard and brittle materials such as hard alloys, ceramics, etc.
• Grain size: reflects the size of abrasive particles. Coarse particle size (such as 36 # -60 #) is used for rough grinding, which removes materials quickly; Fine grained (such as 100 # -200 #) is used for precision grinding, resulting in low surface roughness of the workpiece.
• Bonding agents: including ceramic, resin, rubber, metal bonding agents, etc. Ceramic bonding agents have high hardness and good heat resistance, and are used for rough and semi fine grinding; Resin binders have good elasticity and polishing properties, and are commonly used for precision grinding and polishing; Rubber bonding agent has good flexibility and is used for thin grinding wheels, etc; Metal binders are used to make diamond and CBN grinding wheels, with strong abrasive holding ability.
• Shape and size: There are various shapes, such as parallel grinding wheels, cup-shaped grinding wheels, disc-shaped grinding wheels, etc., which need to be adapted to different processing scenarios; The size specifications are determined according to the processing requirements.
• Installation inspection: Before installation, check for cracks in the grinding wheel and lightly tap it with a wooden hammer. If the sound is abnormal, it cannot be used; Ensure firmness during installation, with the outer diameter of the two flange plates being the same and a pad added in the middle; Large sized grinding wheels need to be balanced and debugged after installation.
