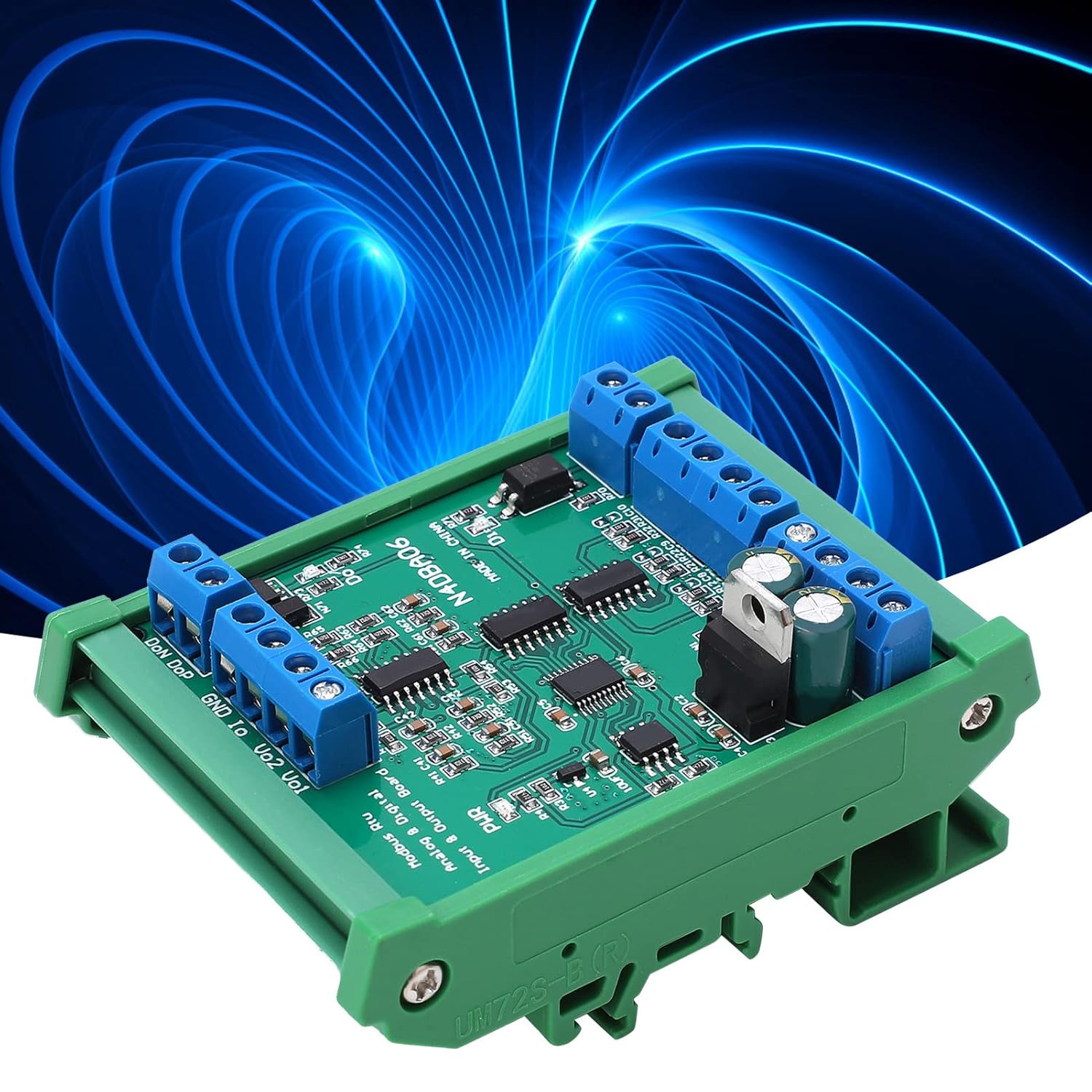

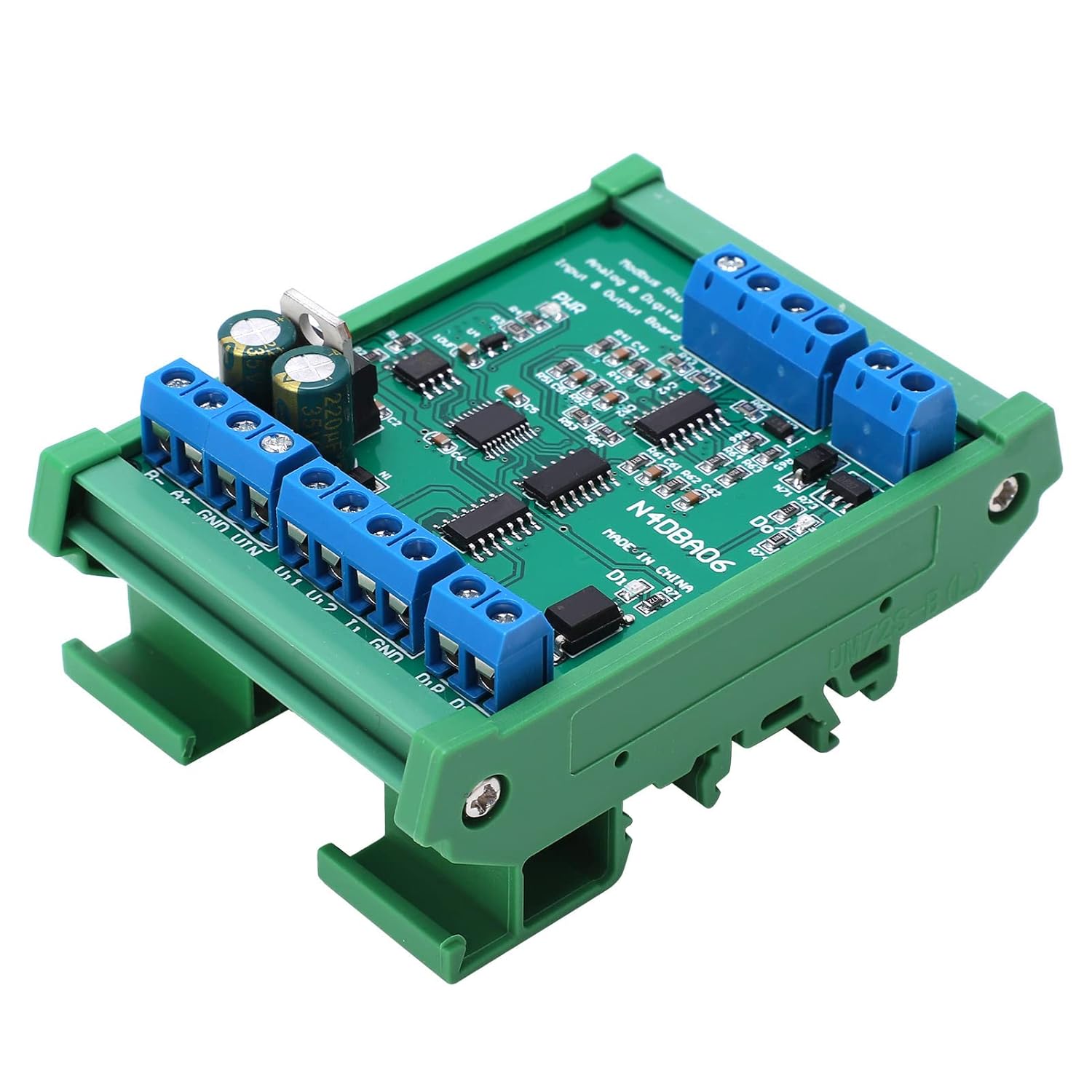

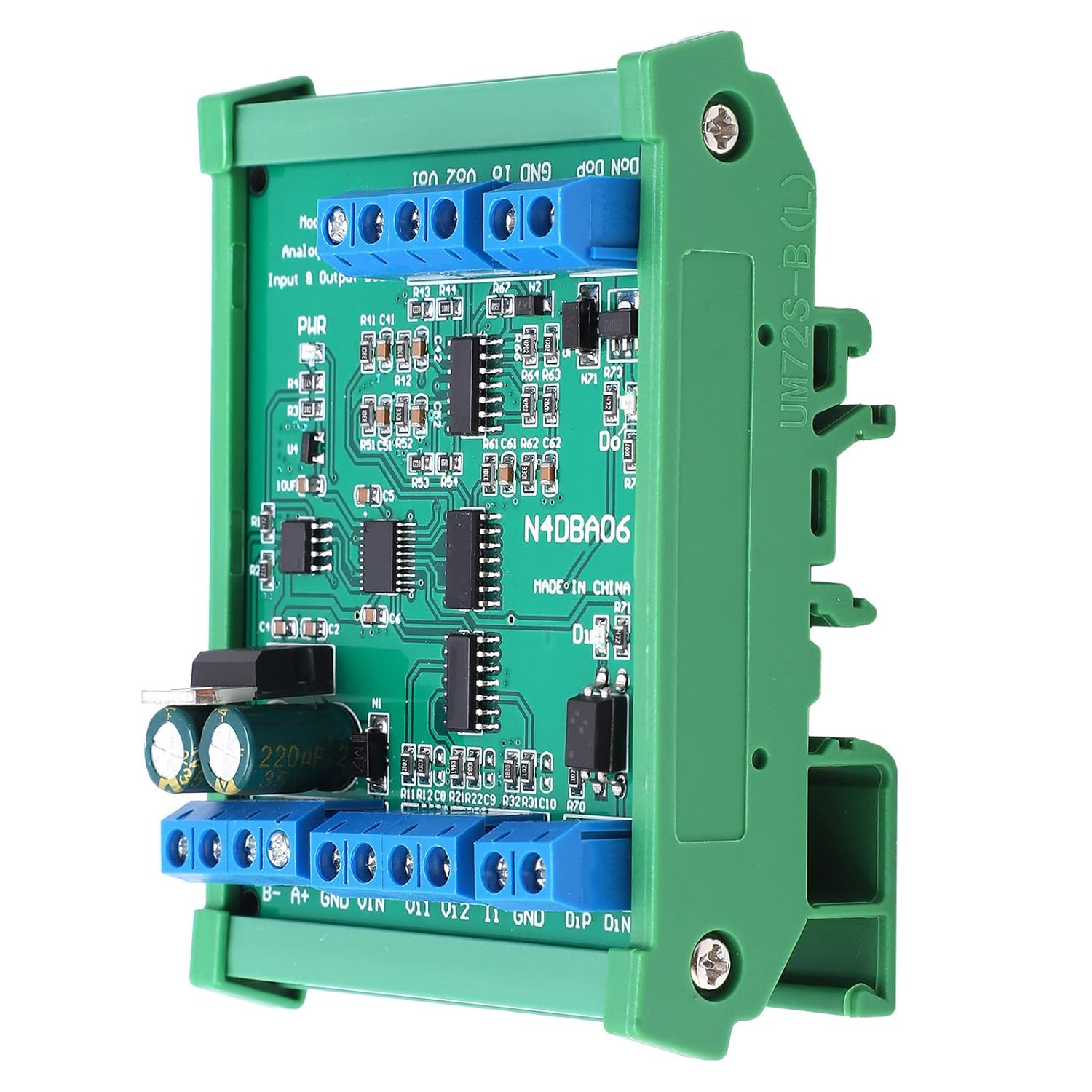

Analog Digital Input Output Module with Shell, 8 - Channel RS485, DC12V, 14-34MA - Voltage and Current Measurement, Flame Retardant VO Grade, Industrial Automatio
Product details
| Management number | 228176701 | Release Date | 2026/05/31 | List Price | US$10.68 | Model Number | 228176701 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

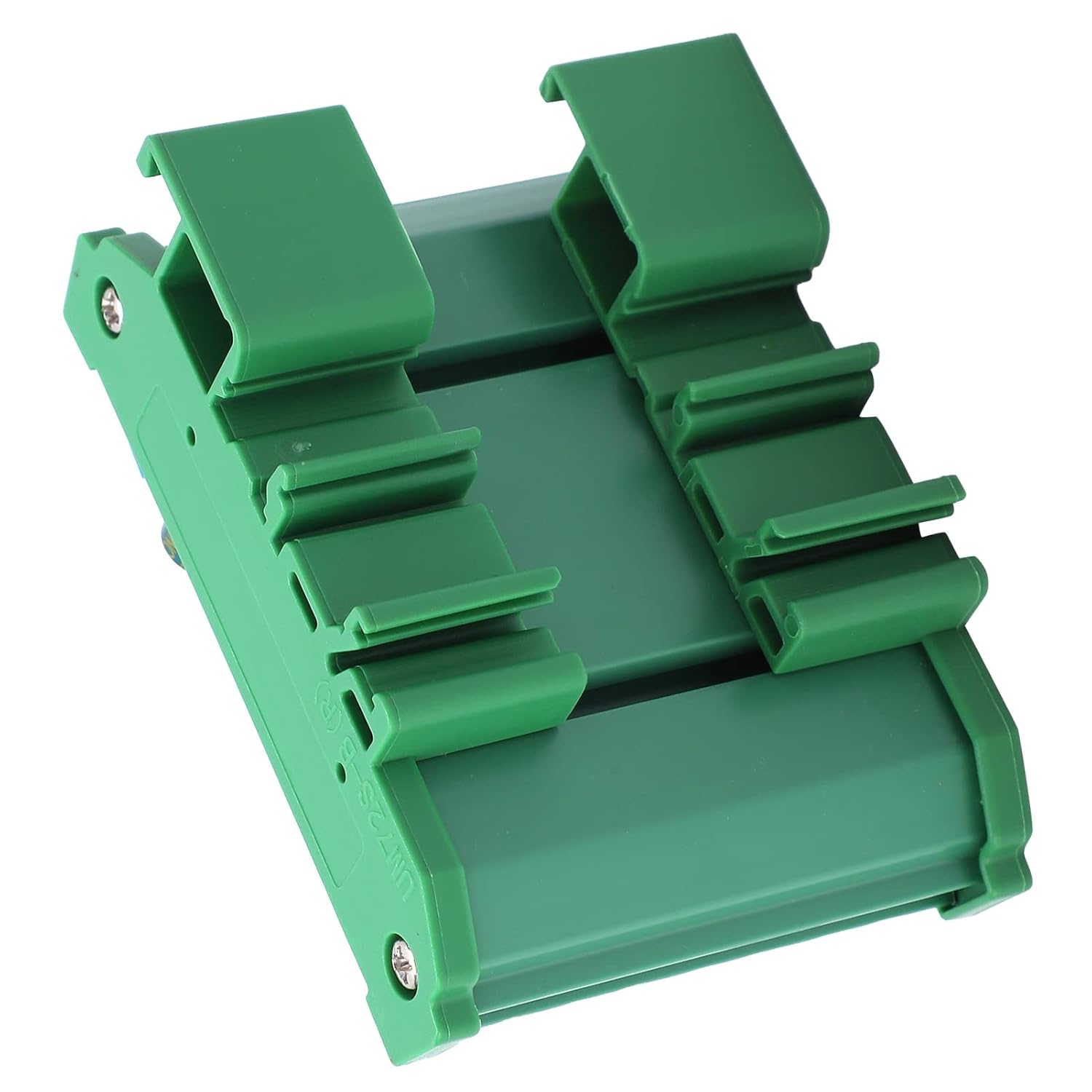

Item Type: Analog Digital Input Output ModuleWorking Voltage: DC 12 (DC 12-25V recommended power supply with small )Working Current: 14-34MA (related to the size of the output current)3 Analog Input Channels, 1 Switch Input Channel: Vi1 is 0-5V voltage input, Vi2 is 0-10V voltage input, Ii is 0-20MA current input; DiP DiN is switch input port (NPN/PNP photoelectric Isolated input)3 Analog Output Channels, 1 Switch Output Channel: Vo1 is 0.05-5V voltage output (The voltage resolution is 0.01V, and the measurement accuracy is 1%; the current resolution is 0.01MA, and the measurement accuracy is 1%; if the error is greater than 1%, it can be calibratedIn addition to the computer serial port super terminal input, the instructions can also be input by PLCIn command mode, up to 247 devices can be used in parallelDIN Rail Box Parameters: Product Model: UM72Color: GreenWidth: Suitable for circuit board width UM72(72cm)Insulation Grade: Flame retardant VO gradeBase Plate Length: Suitable for 60cm circuit boardsInstallation Method: DIM35 and C45 railPackage List：1 x ModuleNote:1. The output voltage range of channel 1 (Vo1) is 0.05V‑5V, the output voltage range of channel 2 (Vo2) is 0.1V‑10V, and the output current range of channel 3 (Io) is 0.5‑20MA 2. At the moment of power‑on, there are 10‑20MS high pulses at the current and voltage output ports 3. DiP DiN is a passive switch input port 4. DoP DoN is a passive switch output port
- [Multi-Channel Support]: Features 3 analog input channels and 3 analog output channels plus switch I/O, enabling versatile signal management for complex control systems
- [High Precision]: Delivers voltage resolution of 0.01V and current resolution of 0.01MA with 1% measurement accuracy and easy calibration for reliable data
- [Robust Output Capability]: Switch output port supports up to 500MA drive current, ideal for directly controlling relays and solenoid valves in automation setups
- [Wide Compatibility]: Supports up to 247 devices in command mode and input via PLC or serial port, enhancing scalability and integration
- [Durable Design]: Constructed with flame retardant VO grade material and DIN rail mounting for safe, stable installation in industrial environments
| ASIN | B0GYYR5NGZ |
|---|---|
| Model | Qalvona9grgmisw1h |
| Terminal | See Details |
| Brand Name | Qalvona |
| Unit Count | 1.0 Count |
| Part Number | Qalvona9grgmisw1h |
| Switch Type | Toggle |
| Circuit Type | 4-yönlü |
| Contact Type | Metal |
| Manufacturer | Qalvona |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Wall Mount |
| Connector Type | Usb_2_0 |
| Current Rating | 2 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 3.54 x 2.75 x 1.57 inches |
| Number of Items | 1 |
| Contact Material | See Details |
| Operating Voltage | 12 Volts |
| Specification Met | ISO 9001 |
| Included Components | no |
| Number of Positions | 1 |
| Lower Temperature Rating | 100 Kelvin |
| Upper Temperature Rating | 500 Kelvin |
| International Protection Rating | IP20 |
