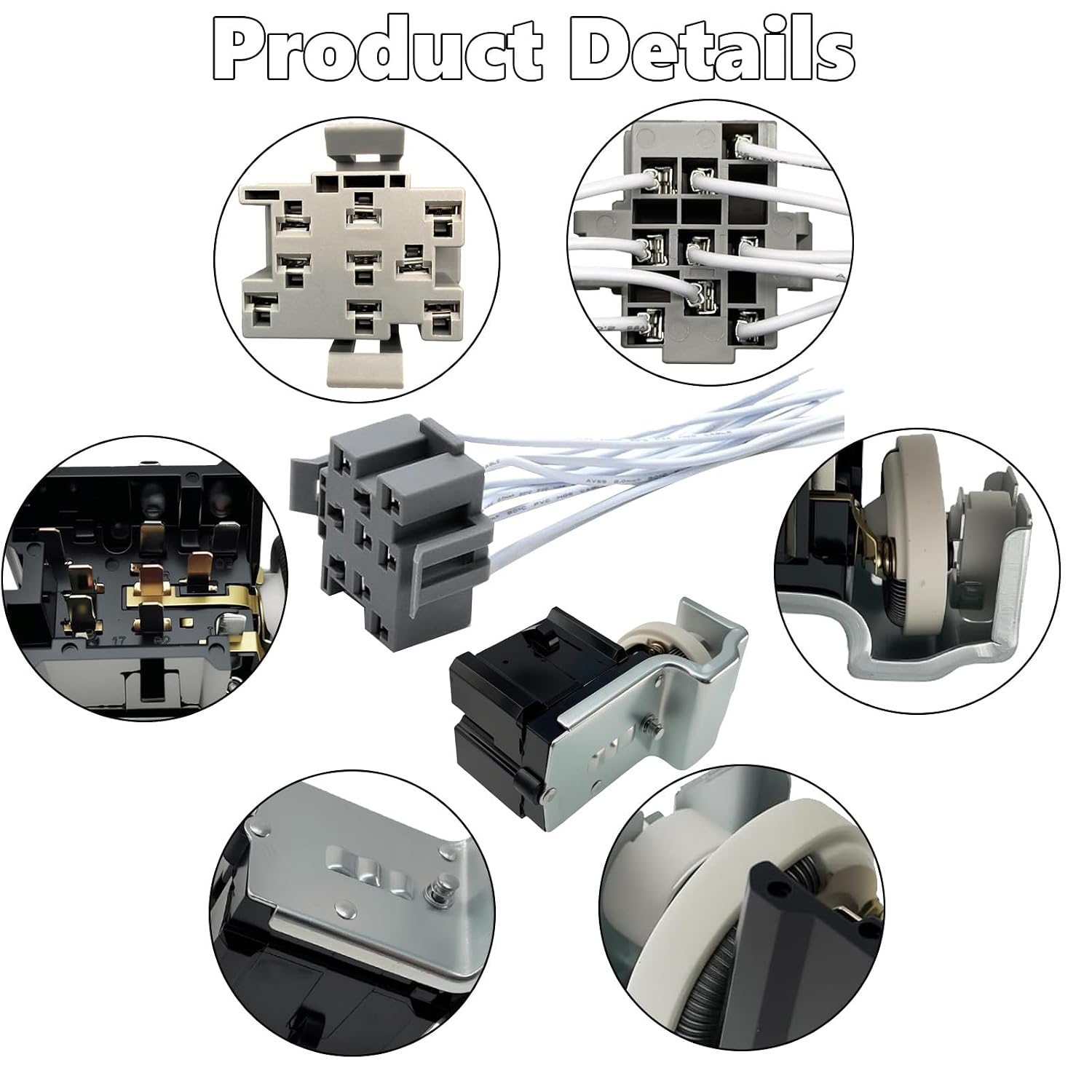

9 Terminal Headlight Switch with Connector Wire Harness Compatible with Ford F-150 F-250 F-350 E-150 E-250 E-350 Bronco Aerostar Explorer Ranger Tempo Replace #: E7TZ-11654-A
US$10.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by remagroup.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$10.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by remagroup.com
Free 30-day returns Details
Product details
| Management number | 234094423 | Release Date | 2026/06/27 | List Price | US$10.00 | Model Number | 234094423 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

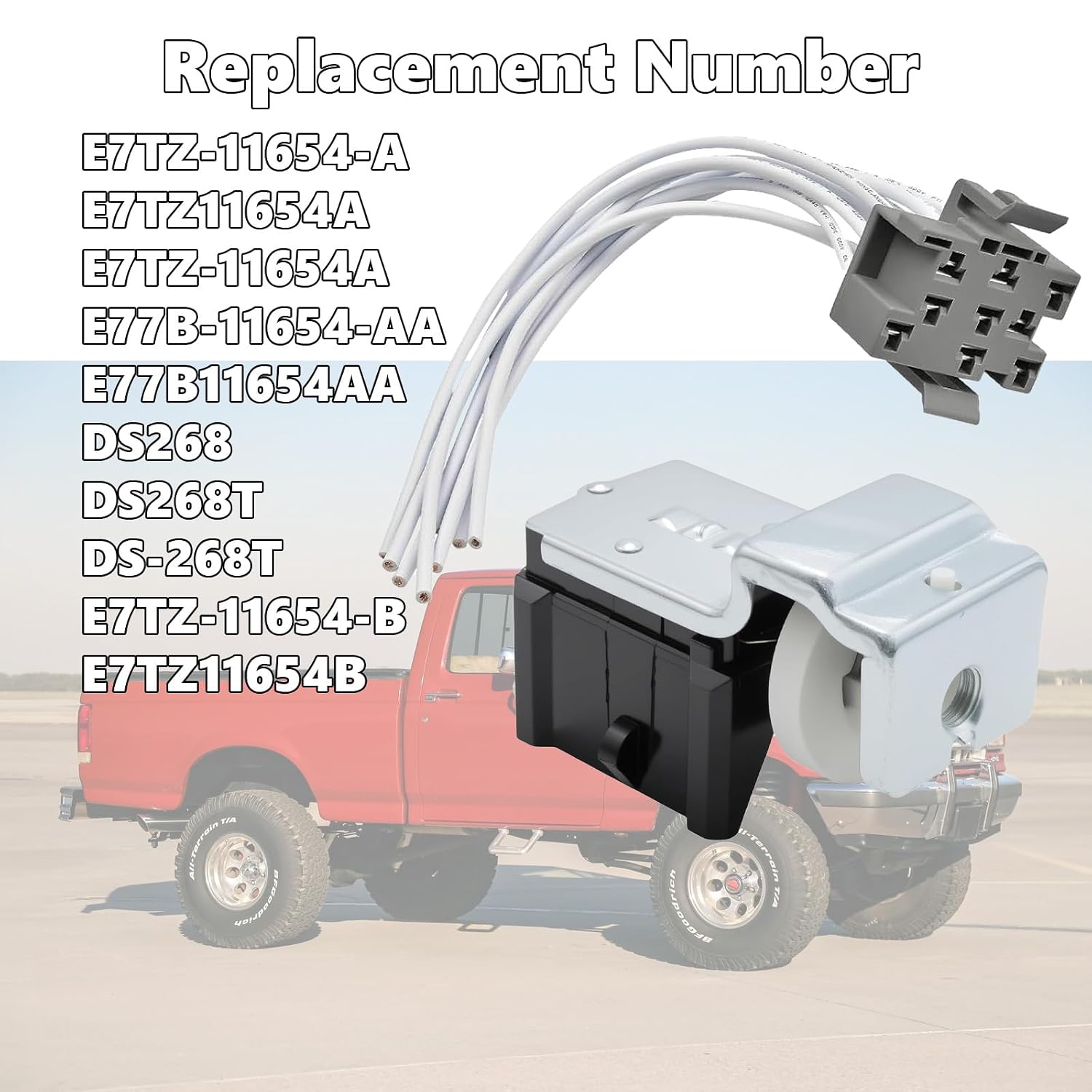

- 【Part Number】: E7TZ-11654-A, E7TZ11654A, E7TZ-11654A, E77B-11654-AA, E77B11654AA, DS268, DS268T, DS-268T, E7TZ-11654-B, E7TZ11654B
- 【Fitment 1】: Compatible with 1987-1996 Ford F-150, 1987-1996 F-250, 1997 F-250 HD, 1987-1997 F-350, 1989-1994 F-53 Motorhome Chassis, 1989-1994 F-59 Commercial Stripped Chassis, 1988-1997 F-Super Duty, 1987-1994 Ranger, 1987-1994 Tempo, 1991-1993 Mazda Navajo, 1987 Mercury Lynx, 1987-1994 Topaz, 1987-1996 Ford Bronco, 1987-1990 Bronco II
- 【Fitment 2】: Compatible with 1987-1990 E-150/E-250/E-350 Econoline, 1987-1990 E-150 Econoline Club Wagon/E-250 Econoline Club Wagon/E-350 Econoline Club Wagon, 2000-2002 E-450 Econoline Super Duty, 2002 E-550 Econoline Super Duty, 2003 E-550 Super Duty, 1991-1992 Explorer,1993-1994 Explorer (Without Automatic Rearview Mirror), 1995-1997 Aerostar, 1992-1994 Aerostar (Without Automatic Headlights), 1987-1990 Escort, 1987-1988 EXP.
- 【Durable Material】:The headlight switch terminal is made of copper alloy, ensuring excellent conductivity and low resistance loss, greatly extending its service life.
- 【Installation Steps】:Firstly, you need to use a flat head screwdriver to remove the decorative cover of the dashboard, remove the fixing screws on both sides, then insert the screwdriver into the groove at the back of the headlight knob, remove the knob, take off the dashboard cover, remove the screws that fix the switch, press and hold the button on the top of the switch, pull out the headlight switch lever, and finally, unplug the switch harness to replace the headlight switch.
| ASIN | B0FPXRZS4G |
|---|---|
| Terminal | Screw |
| Brand Name | CTTMEOOB |
| Unit Count | 1.0 Count |
| Part Number | E7TZ-11654-A |
| Switch Type | Slide |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Full Control |
| Manufacturer | CTTMEOOB |
| Material Type | Copper |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Push Button |
| Current Rating | 20 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 4 x 4 x 2 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 12 Volts |
| Specification Met | ISO 9001 |
| Compatible Devices | 1987-1996 Ford F-150, 1987-1996 F-250, 1997 F-250 HD, 1987-1997 F-350, 1989-1994 F-53 Motorhome Chassis, 1989-1994 F-59 Commercial Stripped Chassis, 1988-1997 F-Super Duty, 1987-1994 Ranger, 1987-1994 Tempo, 1991-1993 Navajo, 1987 Mercury Lynx, 1987-1994 Topaz, 1987-1996 Ford Bronco, 1987-1990 Bronco II, 1987-1990 E-150/E-250/E-350 Econoline, 1987-1990 E-150 Econoline Club Wagon/E-250 Econoline Club Wagon/E-350 Econoline Club Wagon, 2000-2002 E-450 Econoline Super Duty, 2002 E-550 Econoline Super Duty, 2003 E-550 Super Duty, 1991-1992 Explorer, 1993-1994 Explorer (Without Automatic Rearview Mirror), 1995-1997 Aerostar, 1992-1994 Aerostar (Without Automatic Headlights), 1987-1990 Escort, 1987-1988 EXP. |
| Included Components | Terminal Headlight Switch |
| Number of Positions | 9 |
| Smart Home Compatibility | Not Smart Home Compatible |
| Upper Temperature Rating | 40 Degrees Celsius |
| Compatible with Vehicle Type | Multiple vehicle types |
| International Protection Rating | IP65 |
